A complete BNCM product catalogue

From the raw magnetic bead through to finished reagents, antibodies, instruments and point-of-care devices — everything traces back to the same platform.

RAW MATERIAL

BNCM magnetic beads

The core platform: functionalised 50 nm biogenic nanocrystal beads, supplied at 1–100 mL scale, ready to couple to your antibody or ligand of choice.

Bare BNCM magnetic beads
RZ90001000

Bare Beads

Unfunctionalised core bead for custom conjugation.

20 mg/mL · 50 nm · 1 / 10 mL
Silanol hydroxyl BNCM beads
RZ90001001

Silanol Hydroxyl Beads

Hydroxyl-terminated surface for silane chemistry.

20 mg/mL · 50 nm · 1 / 10 mL
Amino BNCM beads
RZ90001007

Amino Beads

Amine surface for carbodiimide (EDC) coupling.

20 mg/mL · 50 nm · 1 / 10 mL
Carboxyl BNCM beads
RZ90001006

Carboxyl Beads

Carboxylated surface for direct protein conjugation.

20 mg/mL · 50 nm · 1 / 10 mL
Protein A BNCM beads
RZ90001004

Protein A Beads

Pre-coupled Protein A for antibody capture and purification.

1 mg/mL · 50 nm · 1 / 10 mL
Protein G BNCM beads
RZ90001005

Protein G Beads

Pre-coupled Protein G for broad IgG subclass binding.

1 mg/mL · 50 nm · 1 / 10 mL
Biotin and streptavidin BNCM beads
RZ90001002 / 003

Biotin / Streptavidin Beads

Bridging chemistry for indirect labelling protocols.

1 mg/mL · 50 nm · 1 / 10 / 50 / 100 mL
Custom BNCM beads
RZ90001008

Custom Beads

Bespoke surface chemistry and conjugation on request.

1 mg/mL · 50 nm · Custom volume
SAMPLE PREPARATION

Enrichment & nucleic acid extraction reagents

Pretreatment reagents that concentrate targets before testing, and a 50+ product extraction line covering virus, bacteria, blood and tissue samples.

Sample microbial enrichment reagent
CLINICAL IVD

Sample Microbial Enrichment Reagent

Non-specific enrichment of viruses, bacteria and fungi from serum, BAL fluid, urine or sputum ahead of clinical in-vitro testing. Complies with TCIQA60-2023.

1 mg/mL · 50 nm · >90% enrichment efficiency

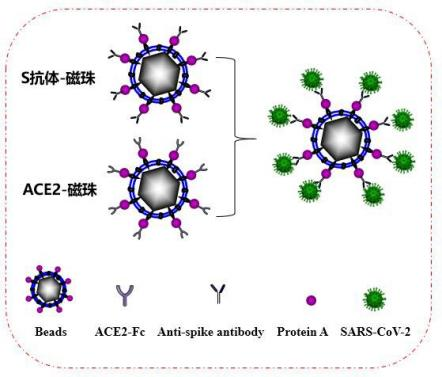

Microbial detection pretreatment reagent panel
7 PATHOGEN TARGETS + CUSTOM

Microbial Detection Pretreatment Reagents

Targeted enrichment kits for Staph. aureus, Klebsiella pneumoniae, Pseudomonas aeruginosa, Acinetobacter baumannii, E. coli, SARS-CoV-2 and M. tuberculosis, plus custom targets.

1 mg/mL · Boxed kit format

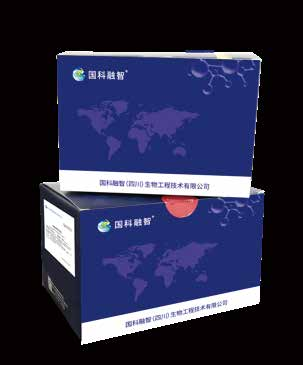

Nucleic acid extraction reagent kit
50+ SKUs

Nucleic Acid Extraction Reagents

Covers virus (standard & ultra-sensitive), whole blood, bacteria, animal tissue, plasmid, PCR product and gel-recovery workflows, with 10–15 minute automated runs.

Stable extraction below 100 copies/reaction
BIOLOGICS

Antibodies & proteins

Over 1,200 antibody and protein products, developed end to end — from peptide design and immunisation through to purification and functional validation.

Antibody series

Roughly 1,000 antibody products across six families, supplied at 1 mg/mL in 50 µL, 100 µL or custom volumes.

FamilyRabbit polyclonalMouse monoclonal
Tag antibodies≥ 8≥ 37
Fluorescent protein antibodies≥ 12≥ 20
Internal reference antibodies≥ 25≥ 54
Popular research antibodies≥ 298≥ 423
Epigenetics antibodies≥ 90≥ 30
Pathology antibodies≥ 474

Protein series

High-purity, high-fidelity proteins expressed across bacterial, yeast and mammalian systems for antibody purification, ELISA and IVD raw materials.

ProductPack size
Alkali-resistant Protein A100 mg
Alkali-resistant Protein G100 mg
Streptavidin (SA)100 mg
CELL THERAPY & RESEARCH

Cell sorting systems

Nanoscale sorting beads paired with purpose-built separation hardware for isolating rare, low-frequency cells.

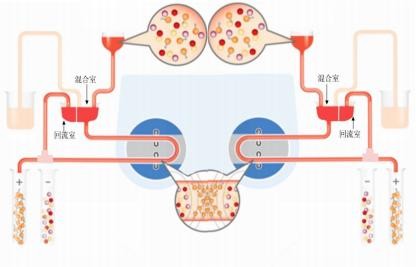

Nanoscale cell sorting magnetic bead workflow
50 nm · BIODEGRADABLE

Nanoscale Cell Sorting Beads

Directionally conjugated to high-specificity monoclonal antibodies (e.g. human CD4, CD8, CD3) or biotin/streptavidin, for direct or indirect target-cell labelling with strong post-sort purity, viability and recovery.

BNCM circulating cell separation equipment
LOW-FREQUENCY CELL ENRICHMENT

BNCM Cell Separation Equipment

Circulating BNCM sorting technology with temperature-controlled magnetic field and anti-aggregation design, purpose-built for CTC detection, non-invasive prenatal diagnosis and stem-cell / gene therapy production.

LABORATORY HARDWARE

Instruments

Automated, IoT-connected instruments built to run BNCM workflows end to end — from raw sample to purified nucleic acid.

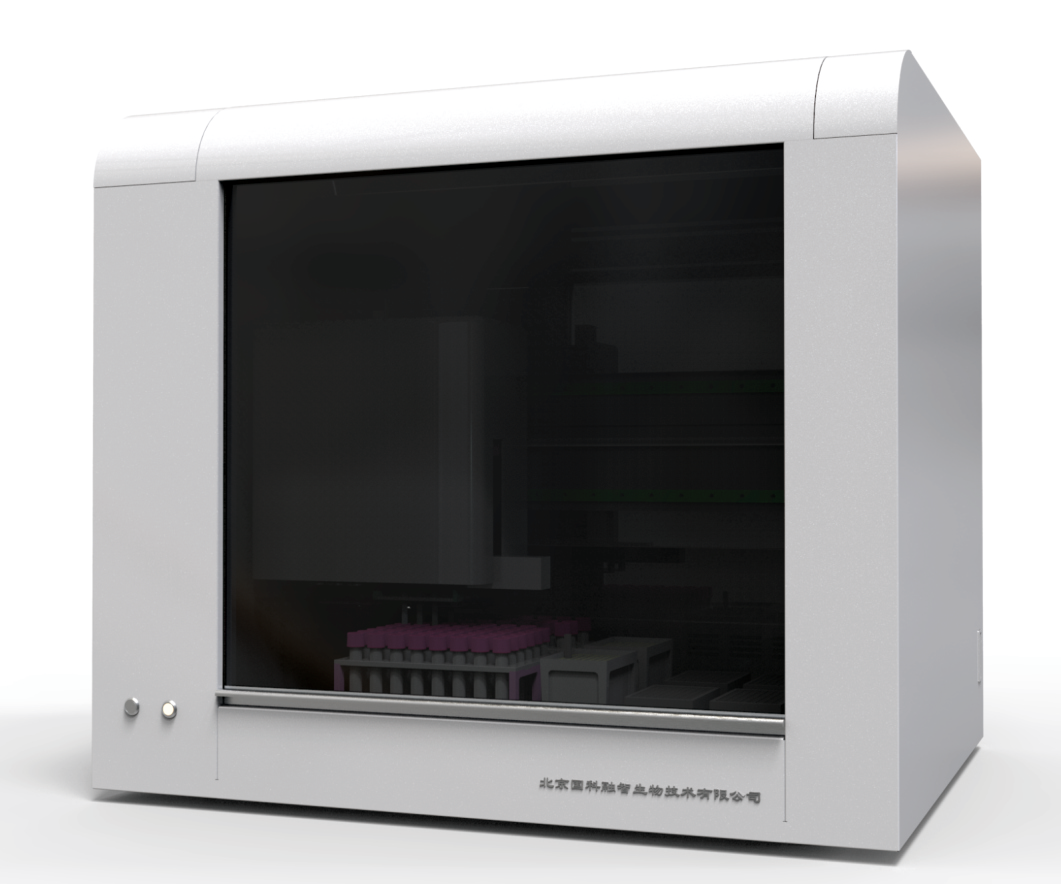

RZ-Auto16NS fully automated sample processing system
RZ-AUTO16NS

Fully Automated Sample Processing System

An automated cap-opening and liquid-transfer workstation for viral sampling tubes: it opens and closes tube caps, meters sample into extraction lysis buffer, and applies UV and ultrasonic decontamination throughout — about 16 samples every 3 minutes.

Throughput~320 samples/hour
Pipetting range200–700 µL
Accuracy< ±1% (200 µL) / < ±0.5% (700 µL)
Arm positioning± 0.1 mm
UV disinfection2 × 200 W
Dimensions900 × 800 × 740 mm, ≤150 kg

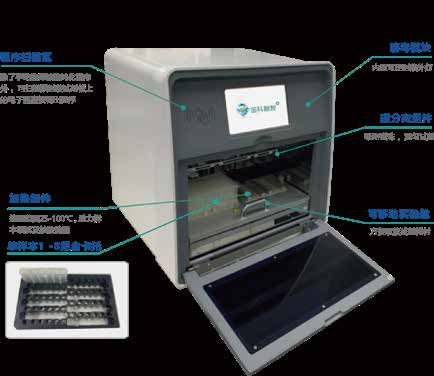

RZ-Ex32A fully automated nucleic acid extraction instrument
RZ-EX32A

Fully Automated Nucleic Acid Extraction Instrument

Magnetic-rod based extraction for standard single samples, pooled/large-volume samples, or trace-level inputs, with electronic-code program selection and IoT remote upgrade and maintenance.

Sample throughput1–32 samples
Sample volume20–1,500 µL
Bead recovery≥ 95%
Extraction time~8–30 min / run
Noise≤ 60 dB
Dimensions373 × 400 × 424 mm, ~25 kg

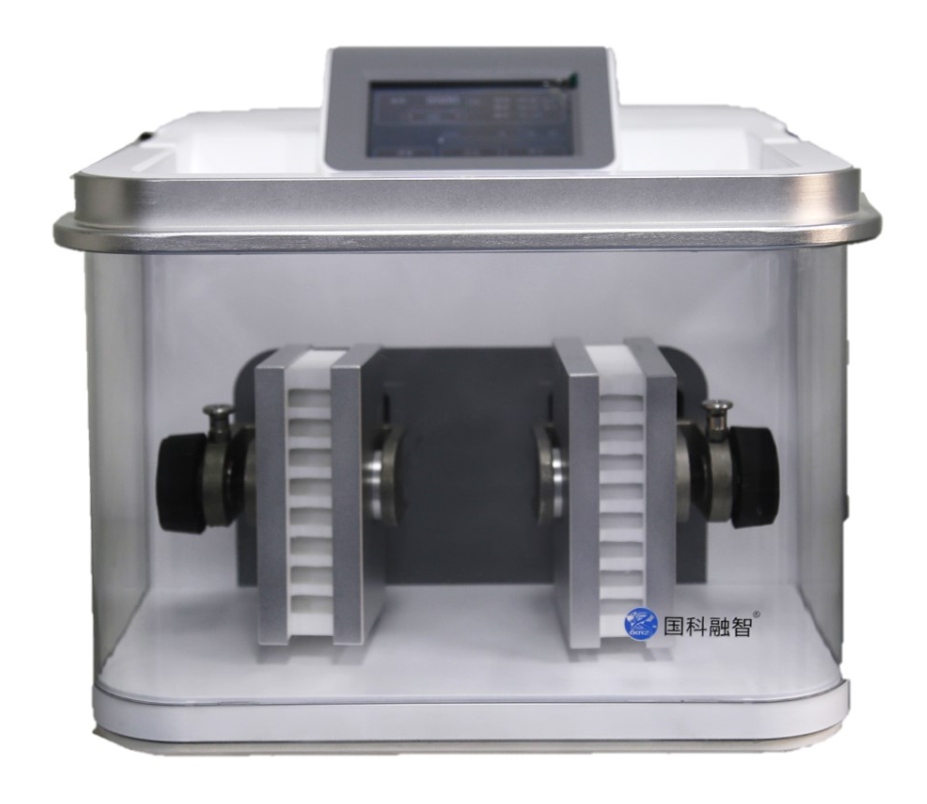

RZ-Gr96A high-throughput grinding instrument
RZ-GR96A

High-Throughput Grinding Instrument

Dual-platform horizontal vibration grinding for tissue, organ, bone, plant and forensic samples, with dry, wet and frozen grinding modes and up to 192 specimens per run.

Sample in / out<10 mm / <5 µm
Vibration speed180–1,800 rpm
Sample volume0.2–20 mL
Power200 W, 220 V / 50 Hz
CapacityUp to 192 specimens/run
Dimensions380 × 480 × 281 mm, 34 kg

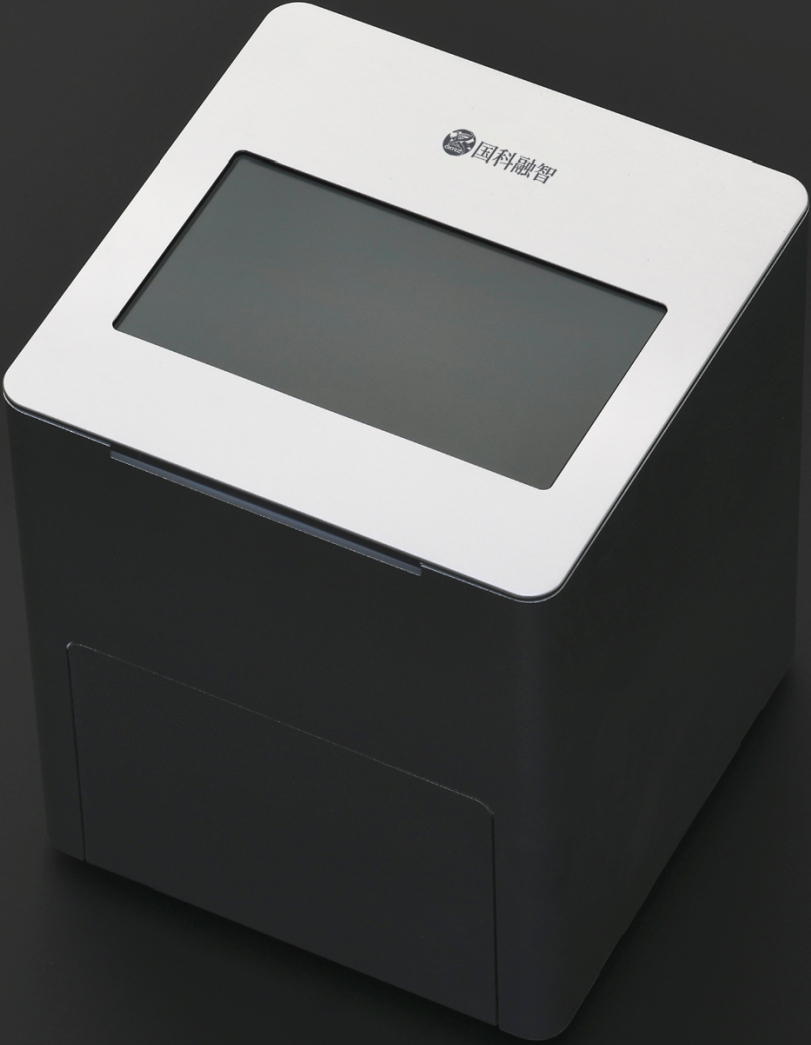

RZ-Fs384A automatic multifunctional plate sealing instrument
RZ-FS384A

Automatic Multifunctional Plate Sealer

One-touch heat sealing for the great majority of PCR reaction plates and deep-well plates, with a full-colour touchscreen and a complete set of adapters and films.

Temperature precision1°C, range 80–190°C
Display800 × 480 colour touchscreen
Max power250 W
Dimensions19.7 × 19.7 × 23.9 cm, 7 kg
POINT-OF-CARE

Toxicology screening & portable analysers

Colloidal-gold rapid test panels for urine and saliva, read on either of two portable immunoassay analysers.

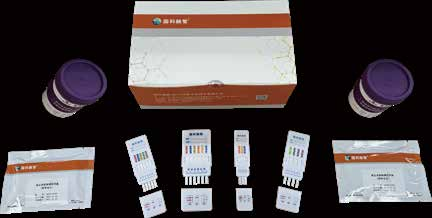

Colloidal gold drug test kits
21 SUBSTANCES

Colloidal Gold Drug Test Panel

Urine and/or saliva cassette and cup formats covering amphetamine, methamphetamine, THC, opioids (morphine, fentanyl, oxycodone), cocaine, ketamine, benzodiazepines and more.

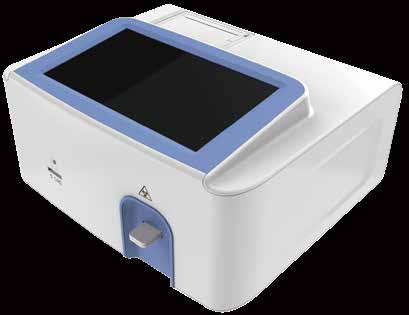

CHG100 portable immunoassay analyser
BENCHTOP

CHG100 Portable Immunoassay Analyser

Image-processing readout on an 8" colour touchscreen (Android), reading bare strips, single cassettes or multi-panel cards for IVD, veterinary, food-safety and drug-testing use.

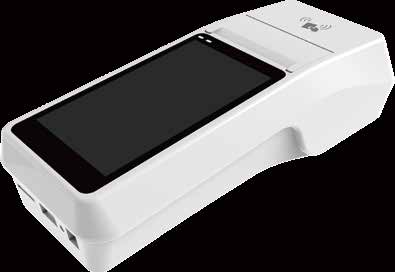

CHG300 handheld immunoassay analyser
HANDHELD

CHG300 Handheld Immunoassay Analyser

Compact, battery-powered reader with a built-in thermal printer and 5" touchscreen (Android 10) for field-based testing.

SubstanceSampleSubstanceSample
Amphetamine (AMP)Urine / SalivaMethamphetamine (MET)Urine / Saliva
MDMAUrine / SalivaTHC (Cannabis)Urine / Saliva
Morphine (MOP)Urine / SalivaFentanyl (FYL)Urine
Oxycodone (OXY)UrineCocaine (COC)Urine / Saliva
Ketamine (KET)Urine / SalivaBenzodiazepine (BZO)Urine
Barbiturate (BAR)UrineMethadone (MTD)Urine
SAMPLE COLLECTION

Sampling tubes & laboratory consumables

The consumables that support every stage of the workflow — from initial collection to plate-based testing.

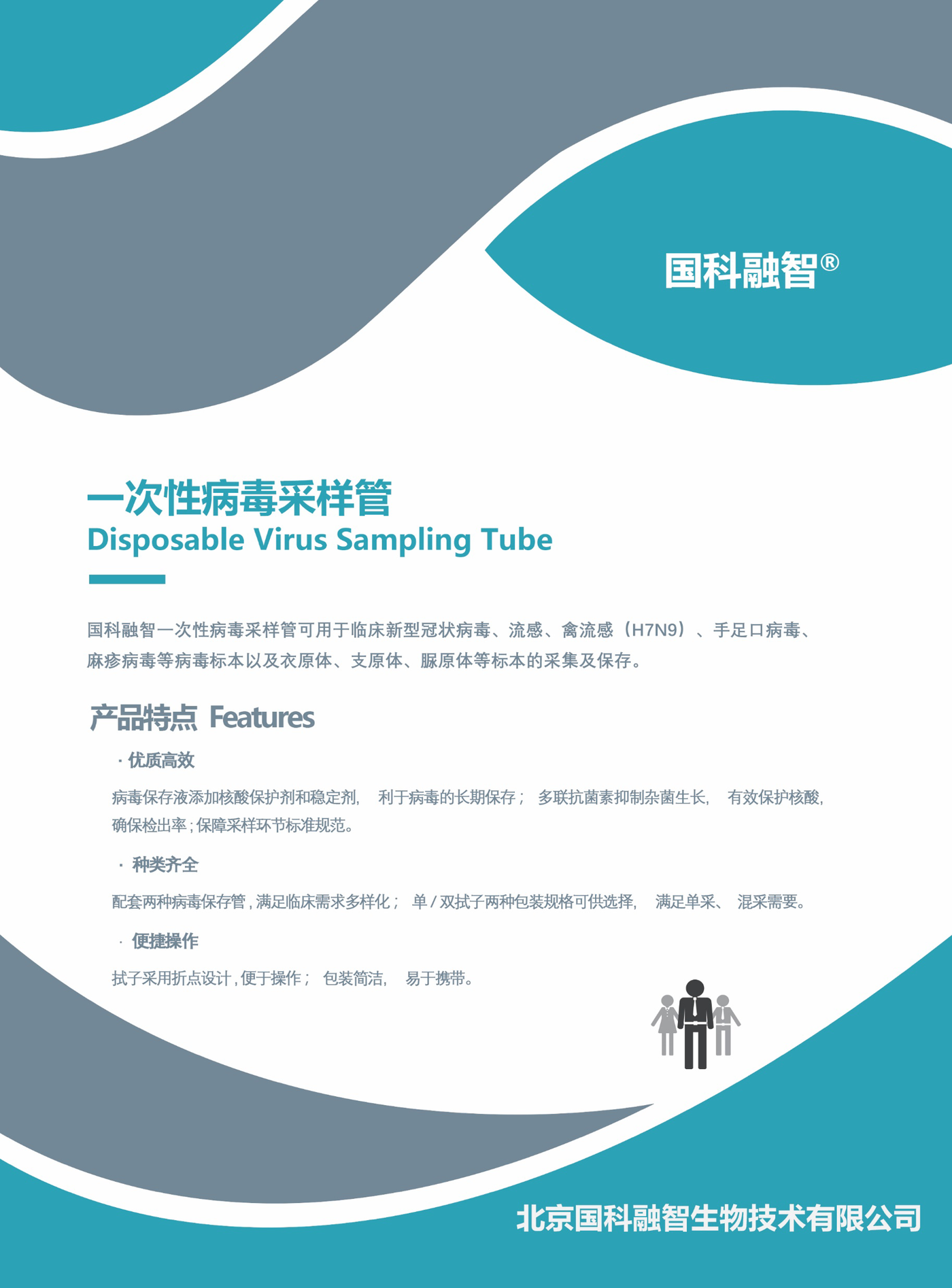

Disposable virus sampling tube
SINGLE / DOUBLE SWAB

Disposable Virus Sampling Tube

For COVID-19, influenza, avian influenza (H7N9), hand-foot-mouth virus, measles, chlamydia, mycoplasma and ureaplasma specimen collection and preservation, with a nucleic-acid protectant and multi-antibiotic preservation solution.

Pipette tips

200 µL and 1,000 µL sterile tips for manual and automated liquid handling.

Buffers & culture media (research use)

Saline, PBS and Tris-HCl buffers; Columbia blood agar, nutrient agar, MIC plates, BHI broth and chromogenic media for Listeria, Cronobacter, Yersinia, Staphylococcus and Salmonella.
